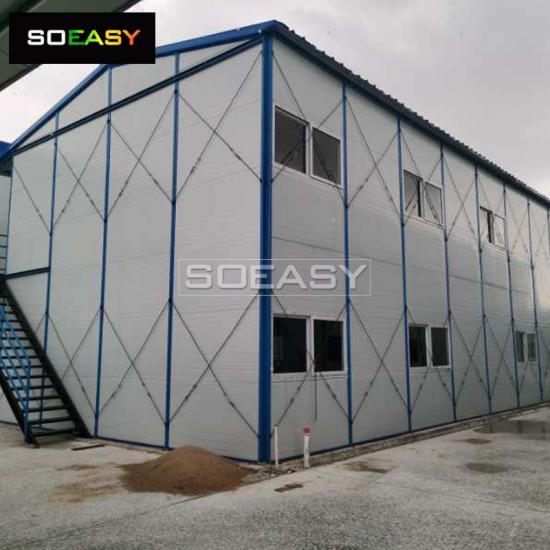

Prefab K Type House Prefabricated House Construction Site Labour Home
prefab houses and prefab homes, they are the economic type modular house.
Prefab K house the most economic and environmental friendly construction building, it's easy to assemble the camps and suitable use for labor dormitory, time saving and labor cost saving.
About the advantages of the prefab house
Industry advantages
Compared with the civil building, prefab house has advantage of easy construction, low cost, time-saving,labor saving and convenient transportation.
Reliable structure

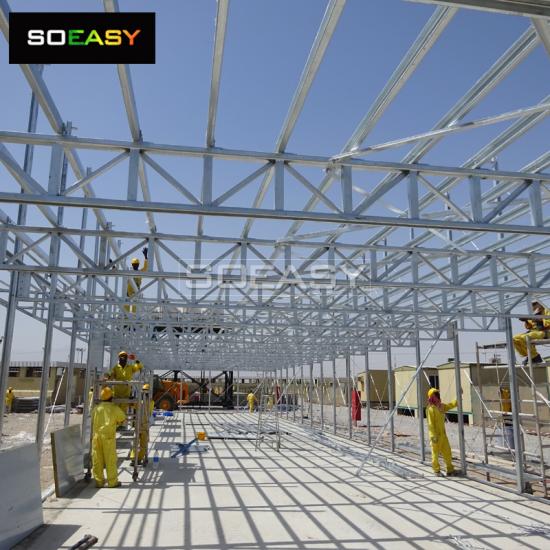

prefab house have main steel structure are made from “C" section steel.Assembly parts by bolts & nuts。
Technical advantages
recyclable materials,the prefab house can assemble and disassemble six times.Short installation period.6 works can install about 2002 a day。
Performance advantages
prefab house has a good water proof, corrosion-resistance,
sound-insulating performance.
|
Size
|
Length |
12K (21.84m) |
|
Width |
3K (5.46m) |
|
|
Height |
3P (2.85m) |
|
|
Total area |
119.24m2 |
|
|
Main steel frame |
Column |
“C” section steel |
|
Beam |
“C” section steel |
|
|
Panel |
Roof panel |
50mm EPS/IEPS/Rock wool/PU sandwich panel |
|
Wall panel |
50mm EPS/IEPS/Rock wool/PU sandwich panel |
|
|
Accessories |
Window |
Aluminum sliding window |
|
Door |
50/75/100mm EPS/IEPS/ Rock wool/PU Sandwich panel door or steel door. |
|
|
Calculation standard |
nK*nK*nP（1k=1.82m，1P=0.95m，one floor=3P） |
|
|
Wind resistance |
Grade 11 (wind speed≤120 km/h) |
|
|
Earthquake resistance |
Grade 7 |
|
|
Snow load capacity of roof |
0.6kn/m2 |
|
|
Live load capacity of roof |
0.6kn/m2 |
|
|
Wall permitted loading |
0.6kn/m2 |
|
|
Heat conductivity coefficient |
0.35kcal/m2hc |
|
|
Load capacity of the roof |
50kg/m2 |
|
|
Load capacity of the second floor |
180 kg/m2 |
|
|
Load capacity of the second corridor |
2.5kg/m2 |
|
